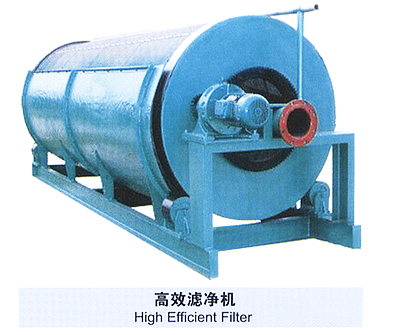

Production Introduction
High efficient machine adopts 15-20micron pore –filtering art whinh is named as micronfiter.Pore-filtering is a mechanical filter method and applied to separate the micron matter(fibered pulp)from liquor fully in order to separate solid and liquor.The pore-filter is different from other method.For pore-filter method,the pore of filter media is very small.IN this way,the filter will hold back the suspended solid under a small water dragging force through centrifugal force from rotating action of filter screen and high water flow speed.
Application In Industry
High efficient machine is anew type high efficient filtering and cleaning machine,which is developed and manufactured,based on practical application experiences,mature technique and our country’s situation. It is applited to separate solid and liquor widely and effectively,such as the filter sew age from the city life,papermaking,textile,printing and dyeing,chemical,especially for the sewage with fiber.
Production Feature
1. Simple structure,runningstably,easy maintain,long life
2. Large capacity of filtering,high efficient,high precision
3. Occupy small space,low cost rotating at a low speed ,self protection automatically,easy installation,save water and electricity
4. Working continuously and automatically without watching on
5. Replace thickener and circular screen dewatering machine by change screen with different mesh.
Paramter Type |
HD-5 |
HD-7 |
HD-9 |
HD-11 |
HD-14 |
HD-18 |
HD-20 |
Filtering area(m 2 ) |
5 |
7 |
9 |
11 |
14 |
18 |
20 |
Filter mesh(mesh) |
60-250 |
60-250 |
60-250 |
60-250 |
60-250 |
60-250 |
60-250 |
Filter capacity(T/H) |
50-100 |
80-150 |
100-200 |
120-240 |
150-300 |
200-400 |
250-600 |
Filter cylinder rotating speed(r/min) |
4-6 |
4-6 |
4-6 |
4-6 |
4-6 |
4-6 |
4-6 |
Pressure of spray water(Mpa) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
Power of motor(KW) |
1.1 |
1.5 |
1.5 |
2.2 |
3 |
4 |
5.5 |
Diameter of filter cylinder(mm) |
¢1000 |
¢1250 |
¢1250 |
¢1500 |
¢1500 |
¢1500 |
¢1800 |
Effective length of filter cylinder(mm) |
1500 |
2000 |
2500 |
3000 |
3500 |
4000 |
4300 |
SS removing(%) |
70-85 |
COD removing rate(%) |
35-50 | |
